Kt Kingtronics SMD Aluminum Electrolytic Capacitors includes an internal element of an anode foil and a cathode foil, and then rolled together with an electrolytic paper.
It attached to external terminals connecting the tabs with the anode or the cathode foils, and sealed in a can case after impregnated with an electrolyte.

The following figure specifically and clearly shows the internal construction of Kingtronics SMD Aluminum Electrolytic Capacitors.

1. Construction:
(Figure 1) OJ structure
(FIG. 2) GPP structure

2. Process:
Protection of the biggest differences between the two products in the PN junction.
OJ structure of the product, the use of glue to protect knot, then at 200 degrees temperature curing. P-N junction obtain protection voltage.
GPP structure of the product, the chip PN junction is under the protection of the passivation glass, sintered glass frit is 800 degrees around the melting, the glass layer is formed after cooling. This glass layer and melt into one chip, can not be separated by mechanical means.
And OJ protection glue, just covering the PN junction surface.

3. Feature Comparison:
1) due to the different structure, when external stress (for example, were angled handle), thermal shock devices, under the plastic package if there is leakage, so the situation. OJ products, the protection of plastic and silicon is not firmly bound to protect a bad situation occurs, the device appears certain failure rate. GPP product similar situation does not occur.
2) High GPP diode reliability. First, GPP at room temperature, leakage than OJ's going small. It is particularly important HTRB (high temperature reverse bias, is a measure of reliability of the most important symbol of parameters) GPP much better, OJ products can only withstand HTRB 100 degrees around. The GPP when the temperature reaches 150 degrees, still performed very well.

4. Description:
OJ previously packaged products is limited to the axial DO series, so many customers are using on-chip package (SMD) products. Because chip product, then only use GPP chip package.
But now, there have been a chip package OJ products. So be sure to pay attention to distinguish the selection.

Supplier Company: Kingtronics International Company        www.kingtronics.com
ISO 9001: 2008 manufacturer, 2 factories, ISO & UL & SGS certified

Quartz Crystal Advantages:
1, Good stability, small changes;
2, Good accuracy, high precision;
3, Low power consumption, small excitation power;
4, Fixed (non-adjustable).

Quartz Crystal Structure:

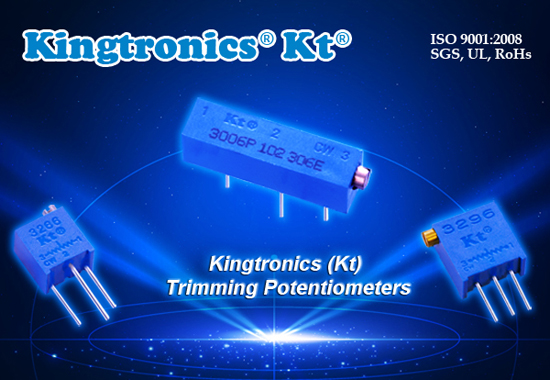

Trimmer potentiometers also known as semi-variable potentiometer, They are used to measure or divide voltages, and to protect or control circuits.

Classification by structure:
Lap, Multi-turn(Kt Trimming Potentiometer: RKT-3540S,RKT-3590), Single-Joint, Double, Multi-tap Type, With Switch, Locking, Non-Locking Type, SMD Potentiometer.

Kingtronics potentiometers (Kt trimming potentiometer) include following part number:
RKT-3006, RKT-3266, RKT-3296, RKT-3323, RKT-3329, RKT-3362, RKT-3386,
RKT-3318, RKT-3309, RKT-065, RKT-105H, RKT-C3305, RKT-3540S, RKT-3590.

For more information, please visit http://www.kingtronics.com/trimming-potentiometers/

Usually we know crystals are referring to Quartz Crystal Resonator and Crystal Oscillator , so what is the basic difference of these two types of crystals?
Today, we would like to distinguish them from their structure. Please follow us with below blog.

Active Crystal Oscillator : Metal Lid, Quartz Blank, Coated Electrode, IC, Ceramic Base, Solder Pads.
Passive Quartz Crystal Resonator : Metal Lid, Quartz Blank, Coated Electrode, Ceramic Base, Solder Pads.

So do you find the difference ? The main point is that Crystal Oscillator is with an IC part . We are sure that you will have a better idea after you read below picture.http://www.kingtronics.com/quartz-crystals/index.html
